G5 Mechanical Thermostat

Model Number: G5

16A Electric Heating System

Supply voltage: AC220VAC

Power consumption: 5 VA

Temp.control range: 5-40℃

Temp.limit range: 25-55℃

Power save mode temperature: 5℃

Temp.deviation: ±0.5K


Collect
  • Features
Introduction
The G5 is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat. The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
Features
LED indicator is light when heating is on With manual switch and knob for easy operation On/off control output for heating device Setback function when connecting with a programmable timer Temperature limitation function for protecting the floor
Technical data
Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4℃~45℃
Limitation scale: 25℃~50℃
Setback temperature: 5℃
Switching differential: ±0.5K
Ambient temperature: -5℃~50℃
Protective housing: IP20
Housing material: self-extinguishing PC

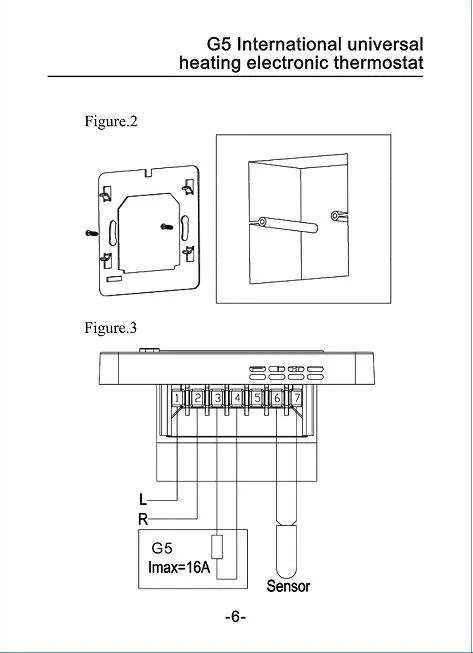

Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m
