HOME >> PRODUCT >>Heating Thermostat >> 16A Mechanical floor heating Thermostat
Product Detail

16A Mechanical floor heating Thermostat

Model Number:S7104

Operaing:AC220+10% ,50/60Hz

Temperature accuracy:1(℃)

Set temperature range:10~30℃

Consumale power:< 2W

Rated output power:< 200W



Collect
  • Specification
  • 商品参数

Part NO.

Load CurrentApplicationRemarkLoading (PCS/Carton)
 S710416AElectrical Heating SystemWith line

64



Main Technical Parmeter

Set temperature range:10-30℃

Temperature accuracy:±1

Rated output power:<200W

Consumale power:<2W

Operaing:AC220±10%, 50/60Hz

Traverse requirements:0.5mm2≤Voltage≤2.5mm2

Figure size:86×86×13mm (Section diameter 86 standard box)

Aperture distance for installation:60mm

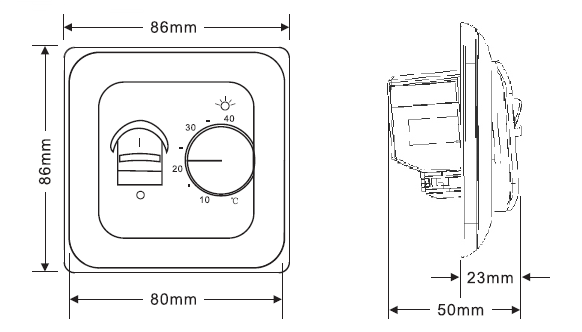

Dimension (Unit: mm)

 Mechanical floor heating room temperature controller thermostat of HAVC controls products

Application of Electrical Heating Thermostat
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…

Mechanical floor heating room temperature controller thermostat of HAVC controls products


Radiant Floor Heating Products:
Thermostats, Electro-thermal Actuators, Thermostatic head and valve,Manifolds &fittings, Water-mixing Center,Wiring Boxes,Energy Meters
Introduction
The M5.XX is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat. The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
Features
LED indicator is light when heating is on With manual switch and knob for easy operation On/off control output for heating device Setback function when connecting with a programmable timer Temperature limitation function for protecting the floor
Technical data
Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4℃~45℃
Limitation scale: 25℃~50℃
Setback temperature: 5℃
Switching differential: ±0.5K
Ambient temperature: -5℃~50℃
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m
