HOME >> PRODUCT >>Heating Thermostat >> HCT010 Underfloor Heating / Boiler Heating Thermostat
Product Detail

HCT010 Underfloor Heating / Boiler Heating Thermostat

Model Name: HCT010

Power supply: 100~250VAC 50/60HZ

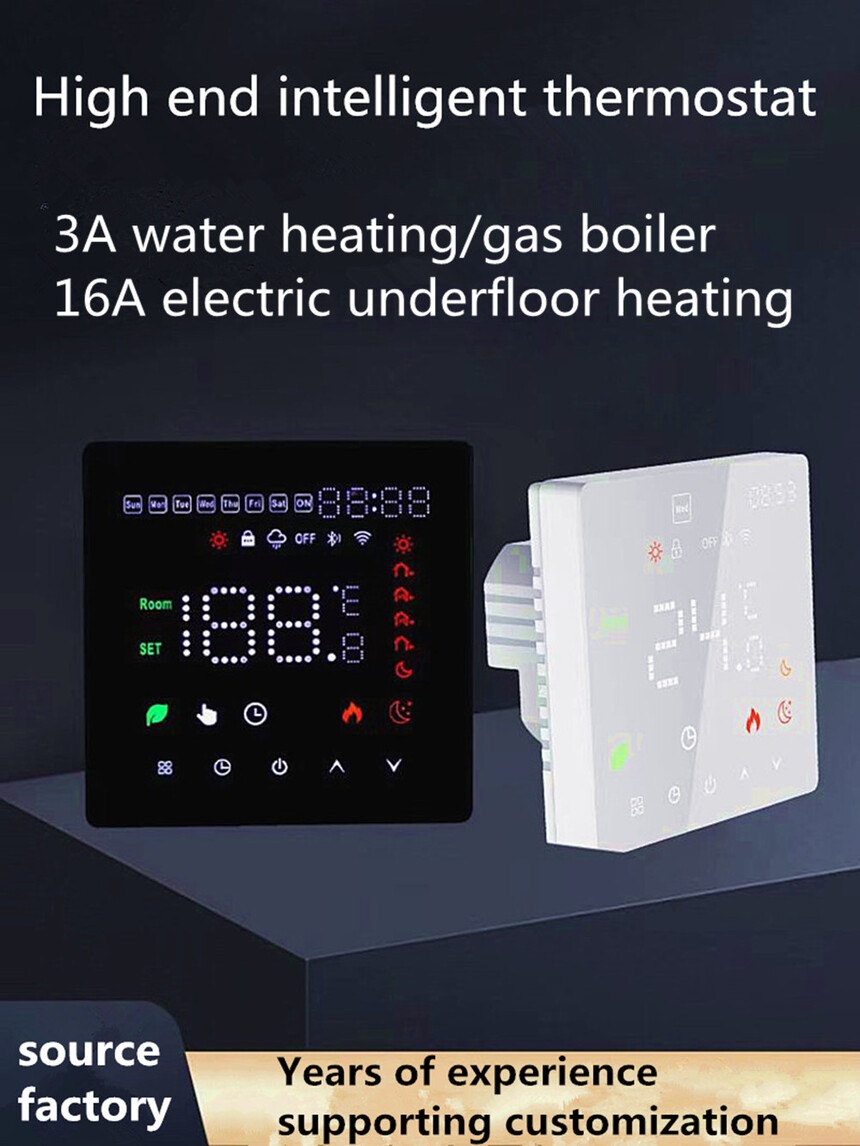

Maximum load current: 3A/16A (Water heating/electric heating)

Room temperature control range: 5~35 ℃

Temperature display accuracy: ±0.5 ℃

Working environment temperature: 0 ℃~45 ℃

Storage environment temperature: -10 ℃ ~ 45 ℃

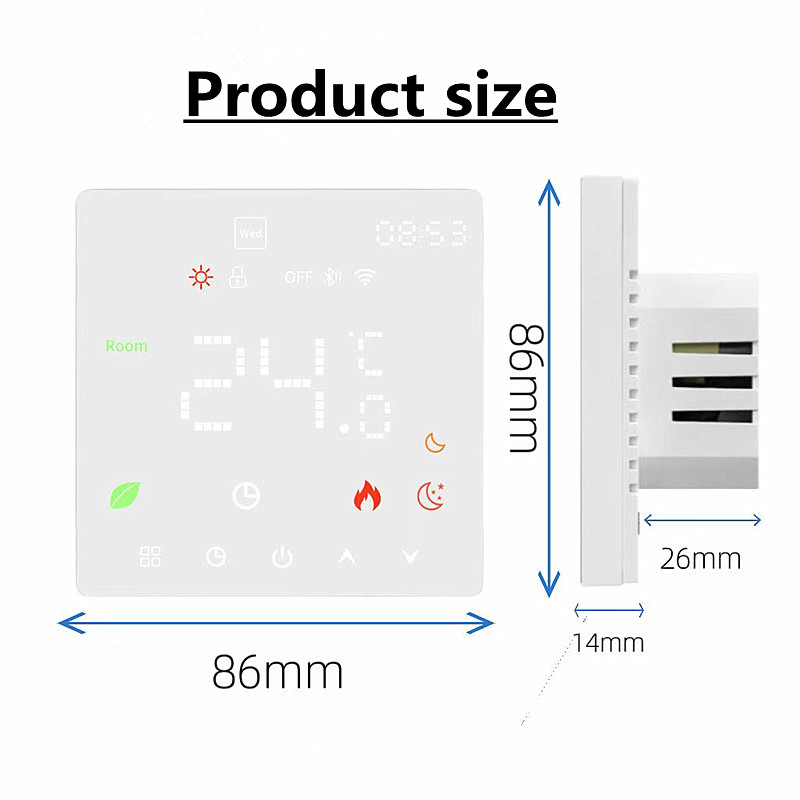

Product size: 86*86*40MM

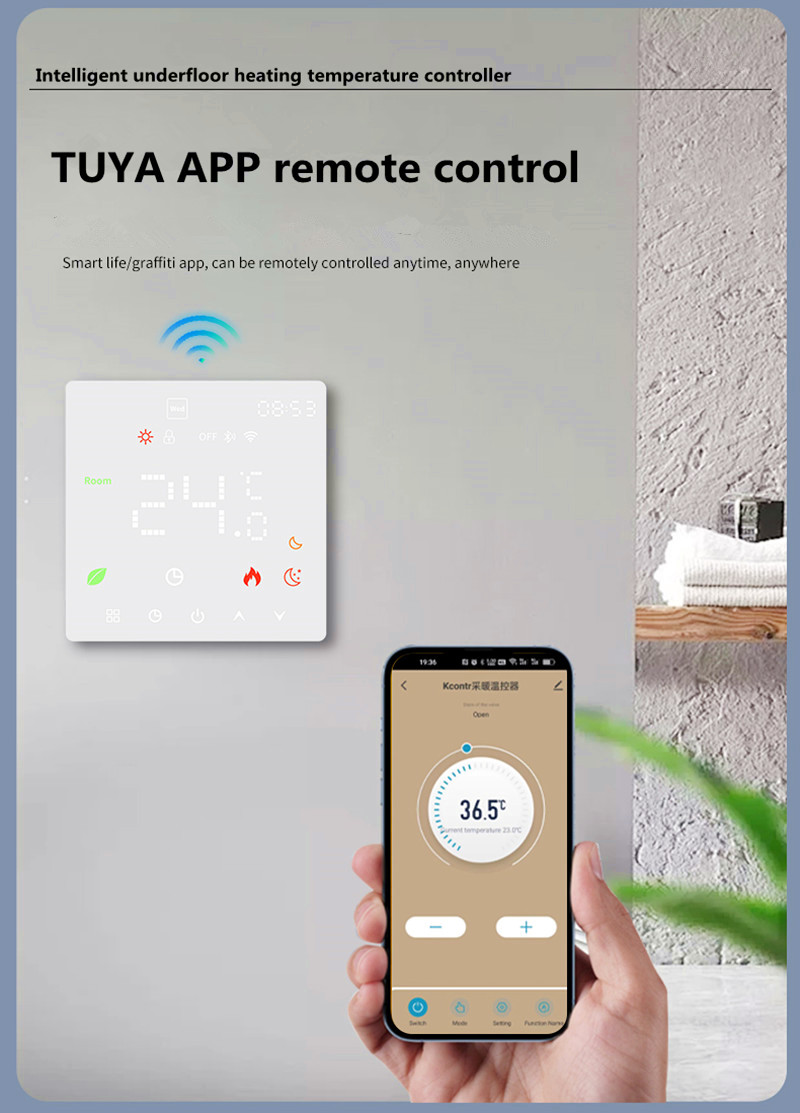

WiFi frequency: 2.4GHZ



Collect
  • Product Description

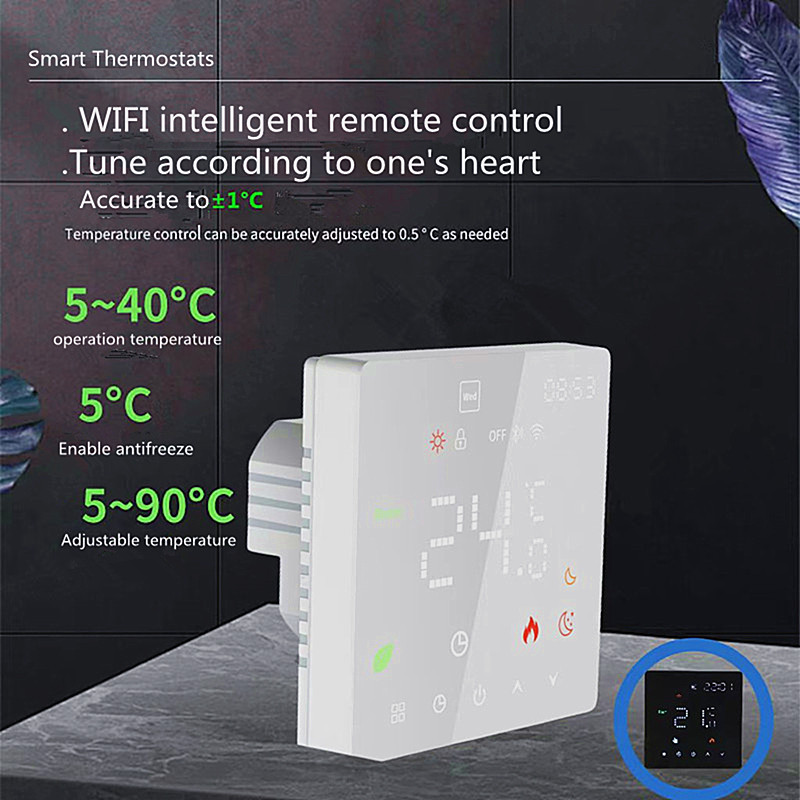

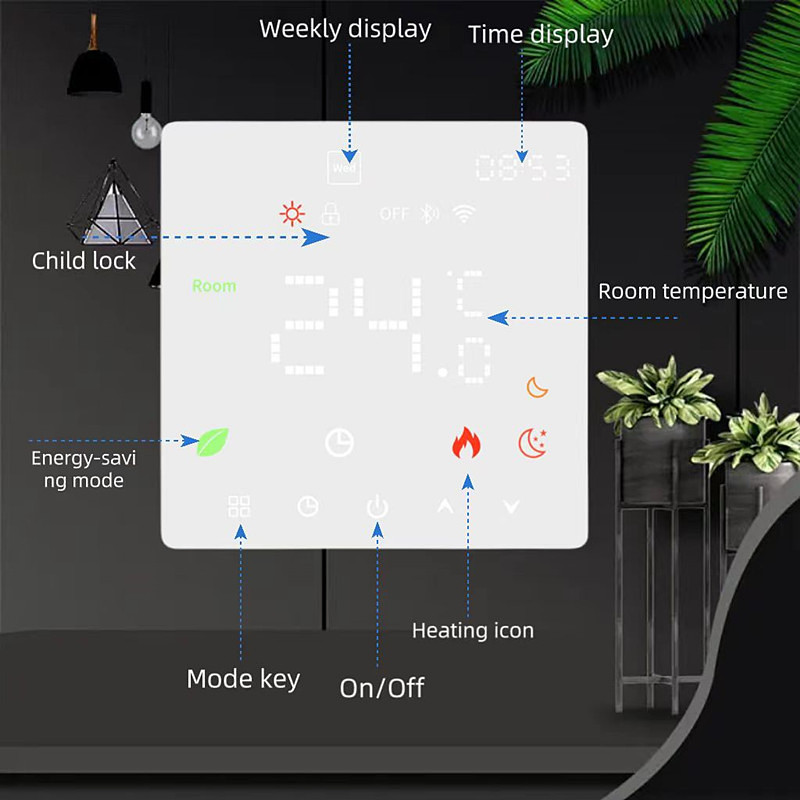

HC-T010 combines a sleek, modern design with LCD display and an intuitive  user interface.  The display offers clear and simple navigation, making it easy to adjust  temperature settings, set up schedules, or activate energy-saving features.  With just a few taps, you can create up to six events per day to reduce heating  when you're away or asleep — helping to optimize comfort and lower energy  consumption.  We have adopted advanced technology and perfect craftsmanship so that  your new thermostat will provide you with a suitable temperature  environment everyday in the future. It makes your life more pleasant and  artistic and making your living environment more fashionable aesthetic.

Product Paramenters
Power Supply
95~240V AC, 50~60HZ
Current Load
5A(water heating/water boiler/gas boiler),16A(electric heating)
Sensor
NTC
Accuracy
+0.5℃ or +1℉
Set Temp.Range
5~35℃
Display Temp. Range
5~99℃
Ambient Temp
0~45℃
Ambient Humidity
-5~95%RH(Non Condensing)
Storage Temp
-5~45℃
Power Consumption
<1.5W
Timing Error
<1%
Shell Material
PC+ABS(flame retardant)
Protection Class
IP20
Buttons
Capactive Touch Buttons
