HOME >> PRODUCT >>Heating Thermostat >> Wet/Electric UFH Thermostat
Product Detail

Wet/Electric UFH Thermostat

Model Name: FH82

Power supply: 100~250VAC 50/60HZ

Maximum load current: 16A/250VAC 3A/250VAC

Room temperature control range: 5~70 ℃

Temperature display accuracy: ±0.5 ℃

Working environment temperature: 0 ℃~50 ℃

Storage environment temperature: -10 ℃ ~ 60 ℃

Product size: 86*86*40MM

WiFi communication protocol: IP/TCP, MQTT

WiFi frequency: 2.4GHZ

Output:3A/16A (Water heating/electric heating)




Collect
  • Features

Power supply: 100~250VAC 50/60HZ

Maximum load current: 16A/250VAC 3A/250VAC

Room temperature control range: 5~70 ℃

Temperature display accuracy: ±0.5 ℃

Working environment temperature: 0 ℃~50 ℃

Storage environment temperature: -10 ℃ ~ 60 ℃

Product size: 86*86*40MM

WiFi communication protocol: IP/TCP, MQTT

WiFi frequency: 2.4GHZ

Output:3A/16A (Water heating/electric heating)

Model Number
ME82
Type
Floor Heating System


Voltage

110-230V AC ,50/60Hz
Temperature setting range
5~95℃
Temperature limitation range
5-60℃(factory setting: 35℃)
Approves
CE, RoHS
Protective housing
IP20
Housing material
anti-flammable PC,V-0
Power consumption
2W
Switching differential
0.5-10℃ adjustable, factory setting ±1℃
Backlight
BLACK

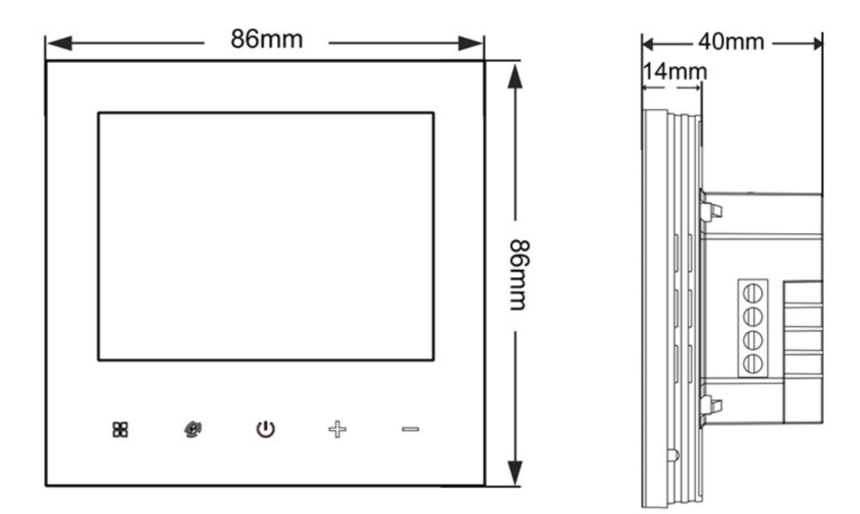

Dimensions:

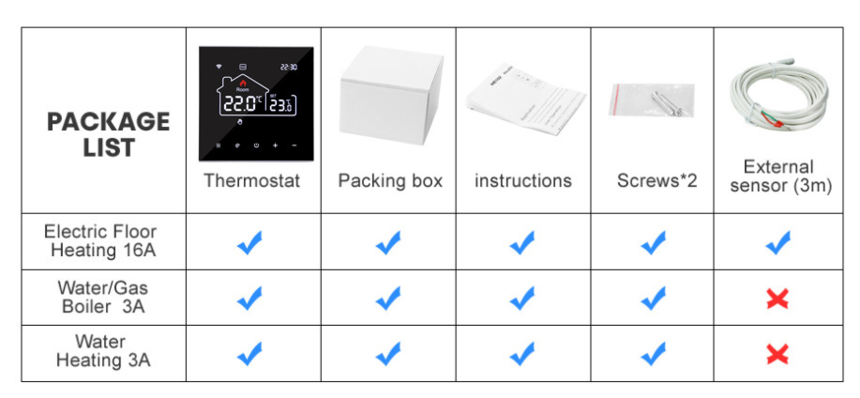

Packing List:

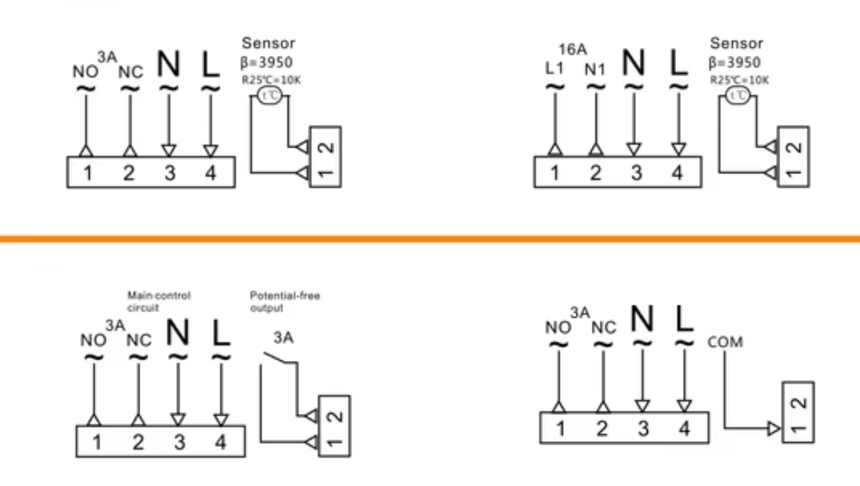

Wiring Diagram:
