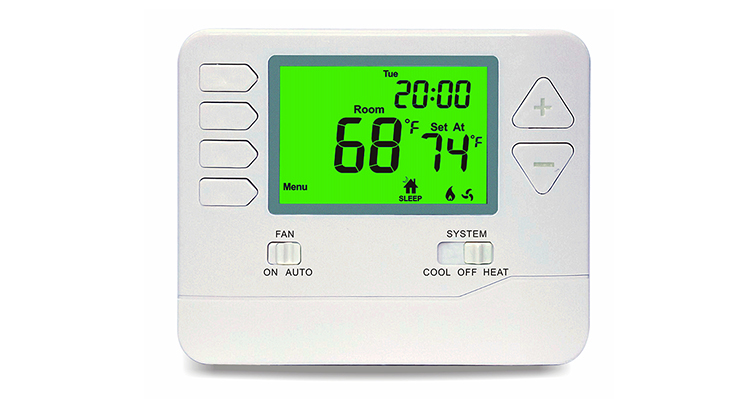

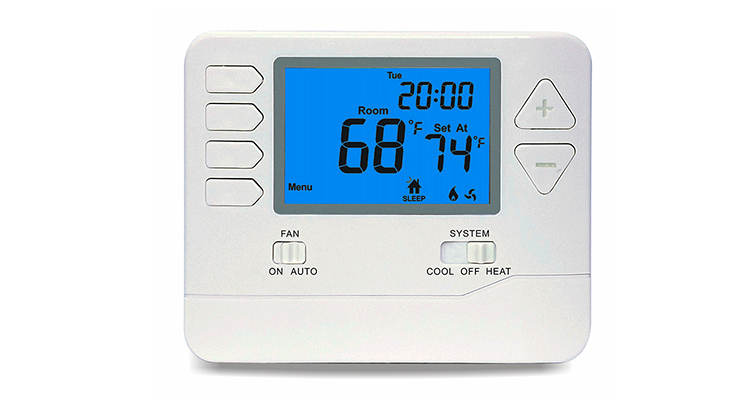

2H2C US Programmable Thermostat

Model Number:715

Stages: 2 Heat / 2 Cool

Switchable Voltage: 24 VAC(18 to 30 VAC), 50/60 Hz

2*AAA 1.5V Alkaline batteries power

Low battery indicator: Under 2.7 V (without 24V power supply)

Temperature Range (°C): 32℉ to 99℉ (1℃ to 40℃)

Control Temp.Range (°C): 44℉ to 90℉ (7℃ to 32℃)

Collect

Name:	Color Screen US Heat Pump Thermostats
Stages:	2 Heat / 2 Cool
Switchable Voltage:	24 VAC(18 to 30 VAC), 50/60 Hz 2*AAA 1.5V Alkaline batteries power
Low battery indicator:	Under 2.7 V (without 24V power supply)
Temperature Range (°C):	32℉ to 99℉ (1℃ to 40℃)
Control Temp.Range (°C):	44℉ to 90℉ (7℃ to 32℃)
Display accuracy:	±1℉(under 68℉)
Load rating:	1.0Amp per terminal, 1.5Amp maximum all terminals combined
Backlight:	Blue/Green/white

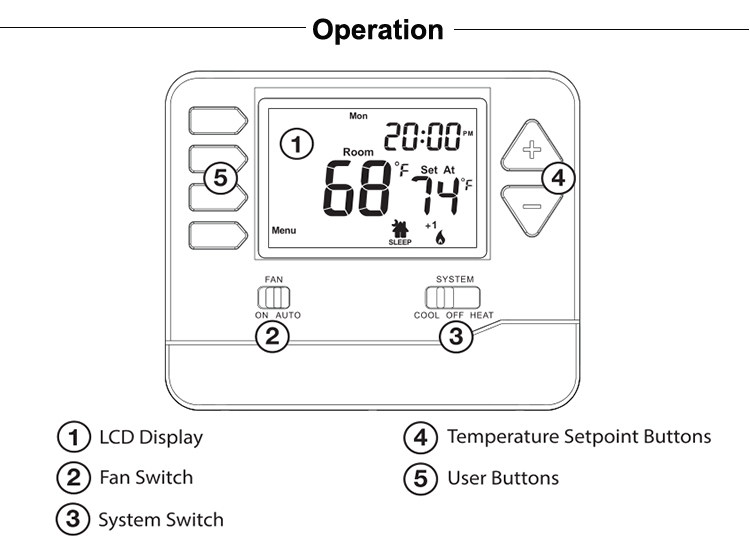

Fan Switch:	AUTO/ON
System Switch:	HEAT/OFF/COOL
Differential:	0.2 to 2.0℉
Dimensions of thermostat:	120 x 98 x 28 MM
