Product Detail

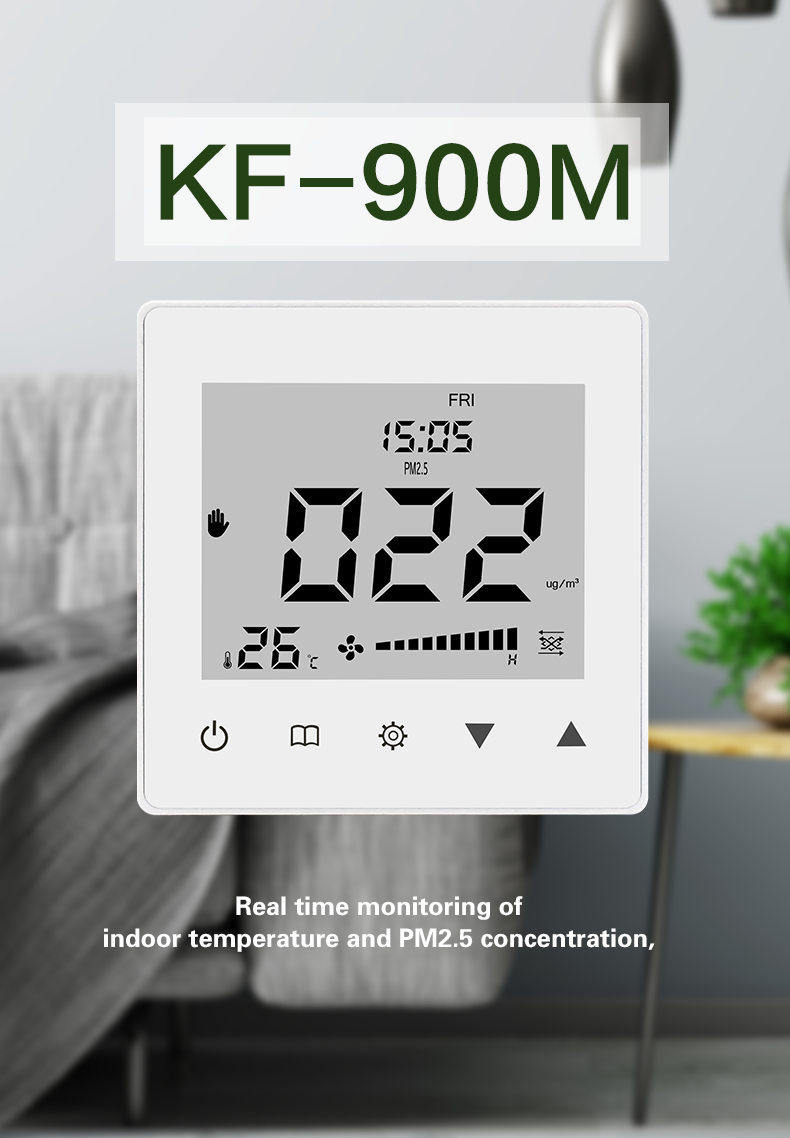

900K WIFI ventilation fan controller

Model Number:KF-900M

Product name:Fresh air ventilation system controller

Built in sensors:VOC+PM2.5+CO2+Temperature+Humidity

Shell color:White & Gold

WIFI function:Optional

Mounting method:Wall mounting

Customized functions design:Support

Suitable for fans:AC/EC/DC


Collect
  • Features
  • Specification

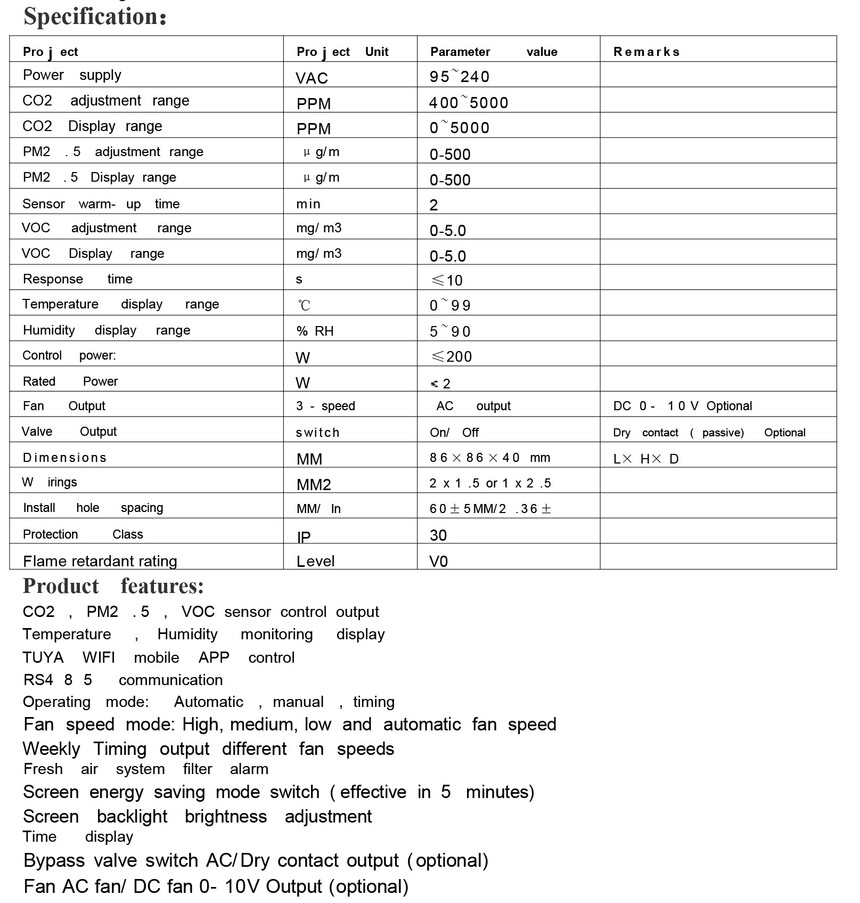

Product Specifications

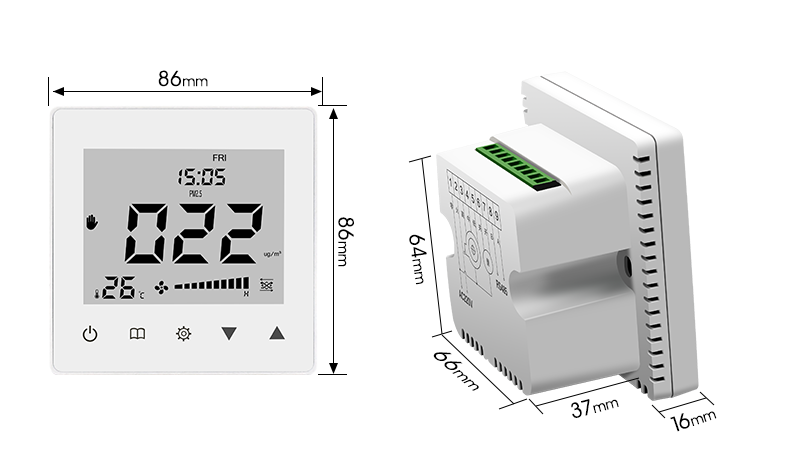

* Dimension:
86 × 86 × 40 mm

* Temperature display range:
0℃ —— 50℃
* Fixing hole distance:
60mm (standard)

* Operating temperature:
-10℃--- +50℃
* Wiring terminal:
 Max 2.5  mm2 wire

* Operating humidity:
5％RH——90％RH
* Rated voltage:
AC110-240V, 50/60Hz

* Storage temperature:
-10℃--- +60℃
* Standby Power:
≤ 2.0W

* Storage humidity:
 ≤ 60％RH
* Control power:
≤ 200W

* Life:
≥ 5 years
* Suitable for fans:
AC/EC/DC



Products Description

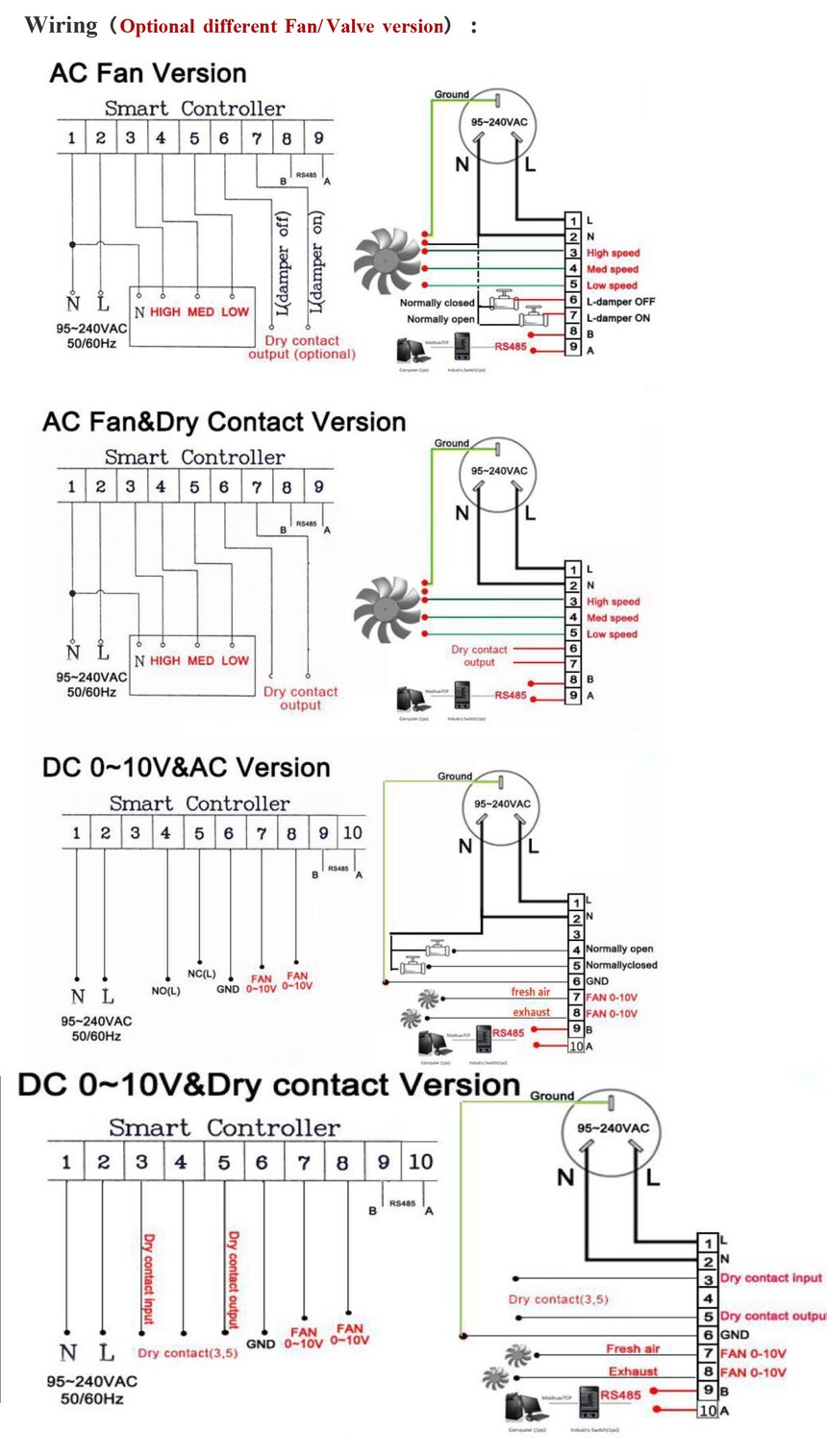

Wiring Diagram
